Description

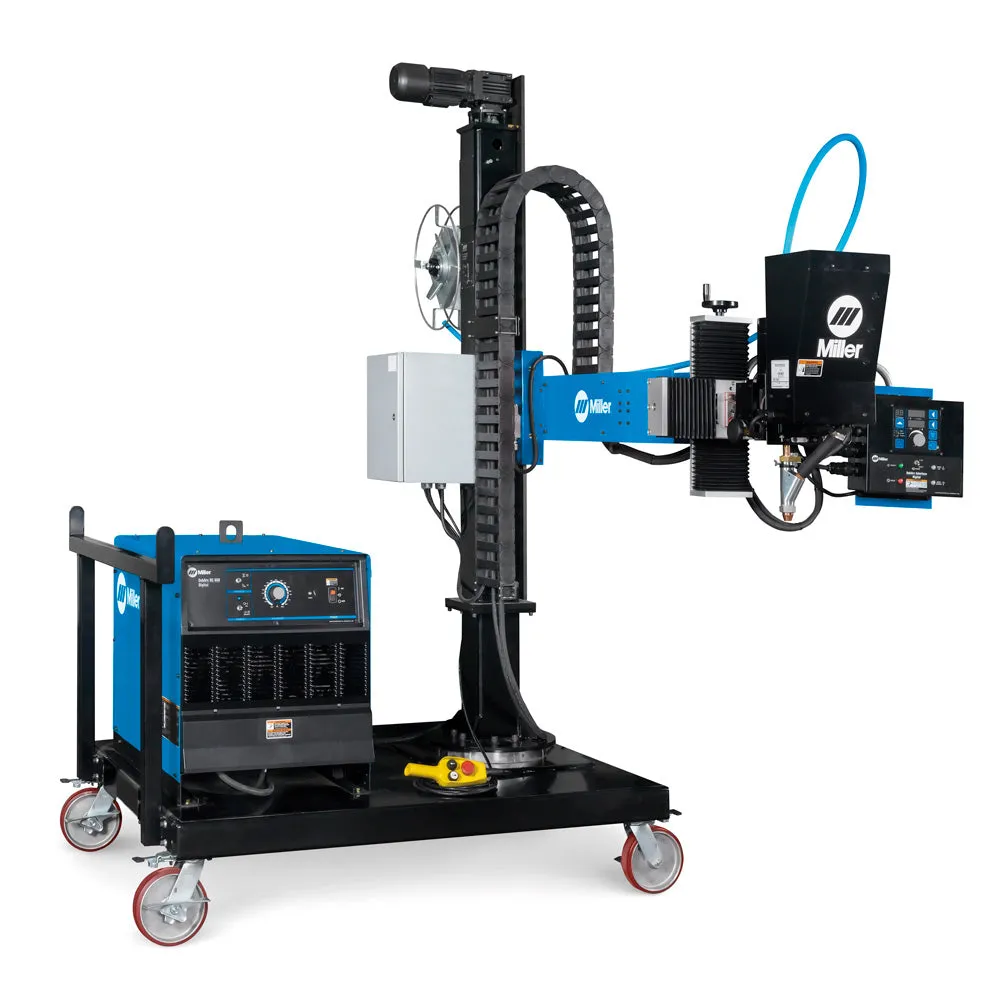

SubArc Portable Welding System is a ready-to-weld submerged arc system for pressure vessel, pipe and welding that requires positioning equipment which can adapt to your application.
Self-contained system
houses power source, column and boom on a mobile platform, providing a compact, turnkey submerged arc welding solution.
Built-in fork pockets and caster wheels
provide mobility options to move the welding system to your workpiece
Ease of positioning the weld head
through use of integrated motorized column, manual telescoping boom, cross slides and 360-degree column rotation.
Motorized column with pendant control
provides 44 inches (1,117 mm) of vertical travel to accommodate workpieces of various heights.
Manual telescoping boom
provides 31 inches (787 mm) of horizontal travel.
Manual cross slides
Manual cross slides provide 7.87 inches (200 mm) of fine vertical and horizontal torch adjustment.
Included With Product
SubArc Portable Column & Boom
SubArc DC 650 Digital
SubArc Interface Digital
SubArc Control Cable, 30 ft.
SubArc Wire Drive 400 Digital Low Voltage
Single Wire Straightener
SubArc Flux Hopper Digital Low Voltage
OBT 600 SubArc Torch
Wire Reel Assembly
Spool Support Assembly
SubArc Manual Slide
