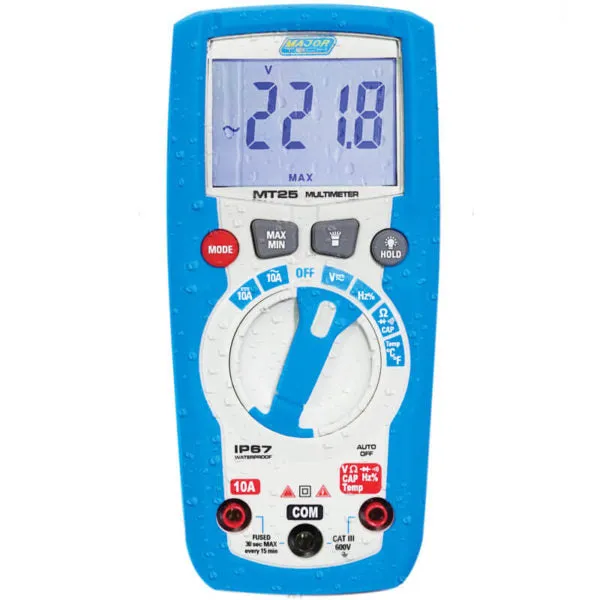

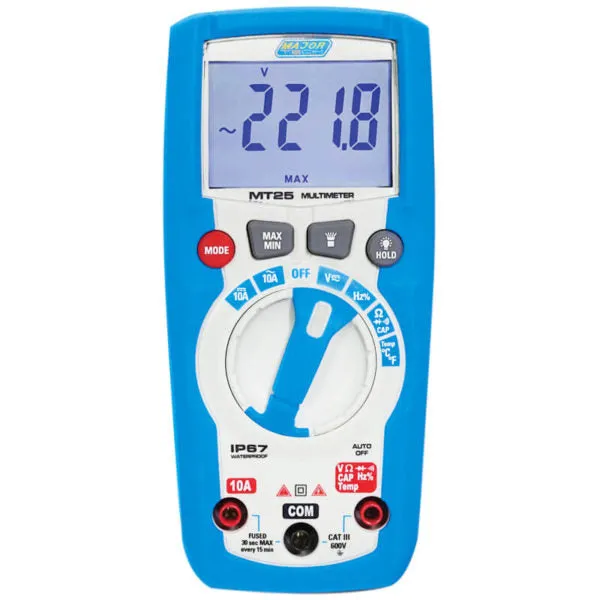

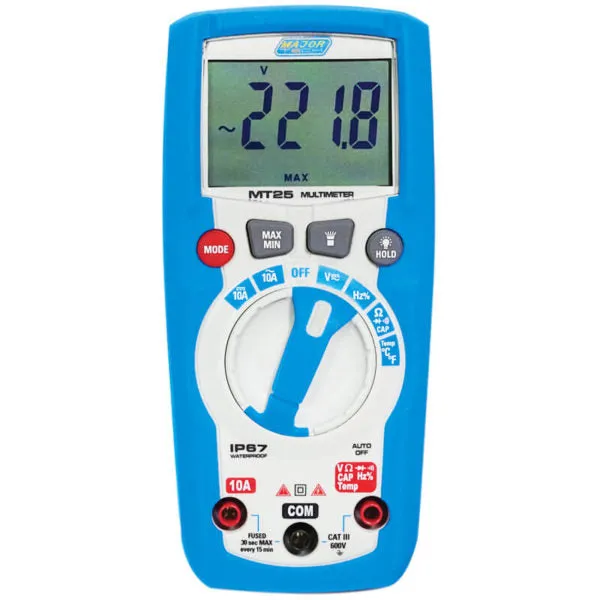

Name: Major Tech MT25 600V AC/DC IP67 Compact Multimeter
SKU: 824793

CAT III 600V and CAT II 1000V
IP67 Dust & Waterproof Double Moulded Housing
41 Segment Bargraph
Measures AC and DC voltage up to 600V
Temperature measurement from -20°C to 760°C
4000 count LCD display
Capacitance to 4000µF
40MΩ Resistance
Backlit display to read easily in dimly lit areas
Min, Max & Data Hold
Auto Range and Manual Range Control
Duty Cycle
Diode Test & Continuity Test

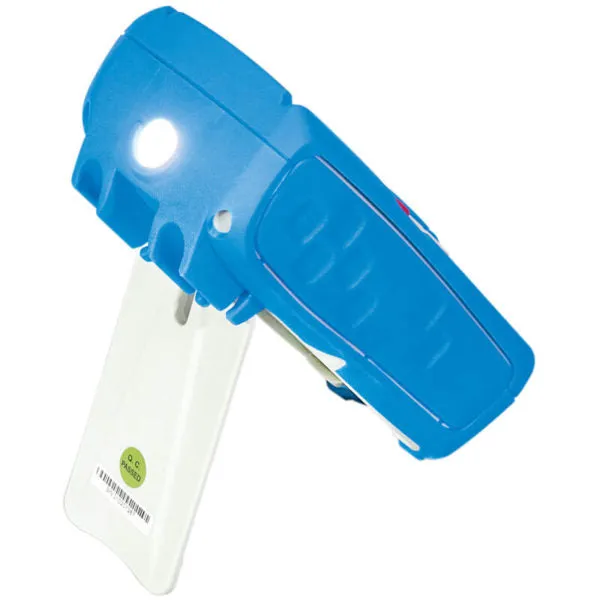

LED Flashlight
Auto Power Off

The MT25 600V AC/DC IP67 Compact multimeter is a handheld tester that provides fast and accurate measurements, displayed on a large 4000 count backlit display with the added advantage of a 41 segment analogue bargraph. The MT25 has a double moulded rubber housing with IP67 waterproof and dustproof rating for safety and durability and has the IEC 61010-1 CAT III 600V safety rating. Multiple measuring functions include AC and DC voltage, AC and DC current, resistance, capacitance, frequency, temperature and duty cycle, plus a continuity and diode test range. The MT25 also offers the added convenience of a built-in LED flashlight for dimly lit areas and a tilt stand.

Specifications

Function	Range	Resolution	Accuracy
DC Voltage	400mV – 600V	1V	±(1.2% 2 Digits)
AC Voltage	4.000V – 600V	1V	±(1.5% 10 Digits)
DC Current	4A – 10A	10mA	±(3.0% 5 Digits)
AC Current	4A – 10A	10mA	±(3.0% 5 Digits)
Resistance	400Ω – 40MΩ	10kΩ	±(1.2% 5 Digits)
Capacitance	40nF – 4000mF	1µF	±(1.2% 5 Digits)
Frequency	9.999Hz – 9.999MHz	1kHz	±(1.2% 3 Digits)
Temperature	-20°C – 760°C	1°C	±(3.0% 5°C)
Duty Cycle	0.1% – 99.9%	0.1%	±(1.2% 2 Digits)
Digital Display	4000 Count
Continuity Test	Audible signal if the resistance is approx. 50Ω or less
Diode Test	Test current 0.3mA typical, open circuit voltage 2.8V DC typical
Data Hold	Yes
Back Light	Yes
Enclosure	IP67 Dust & Waterproof Double Moulded
Batteries	3 x AAA
Dimensions	147 x 68 x 50mm
Weight	318g
