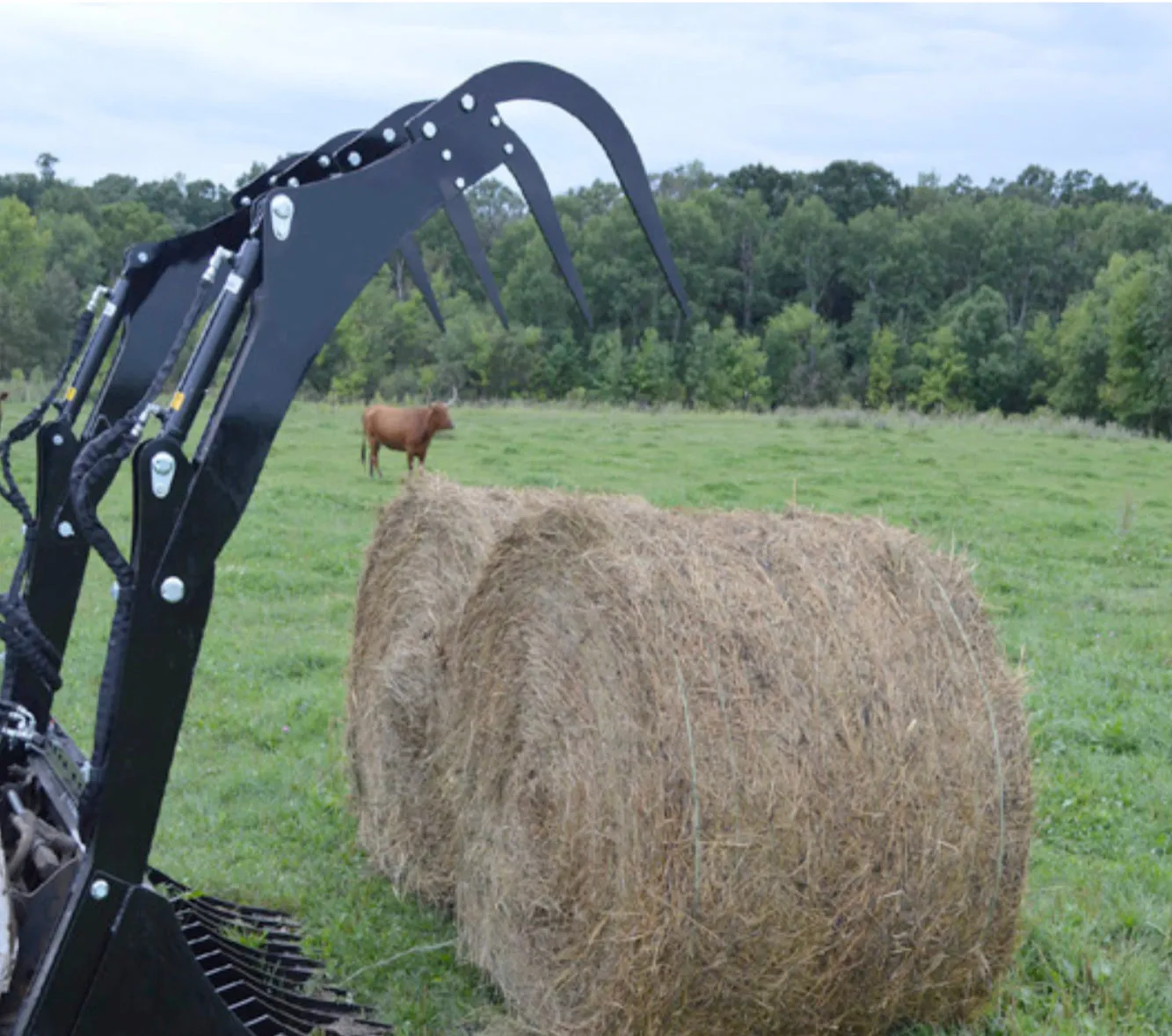

Our skid steer Bale Grapple is great for transporting large hay bales. The extended grapple arms provide a large reach to securely fasten the load. The 3,000 PSI cylinder has plenty of power to clamp down the bale, and make sure it will not go anywhere.

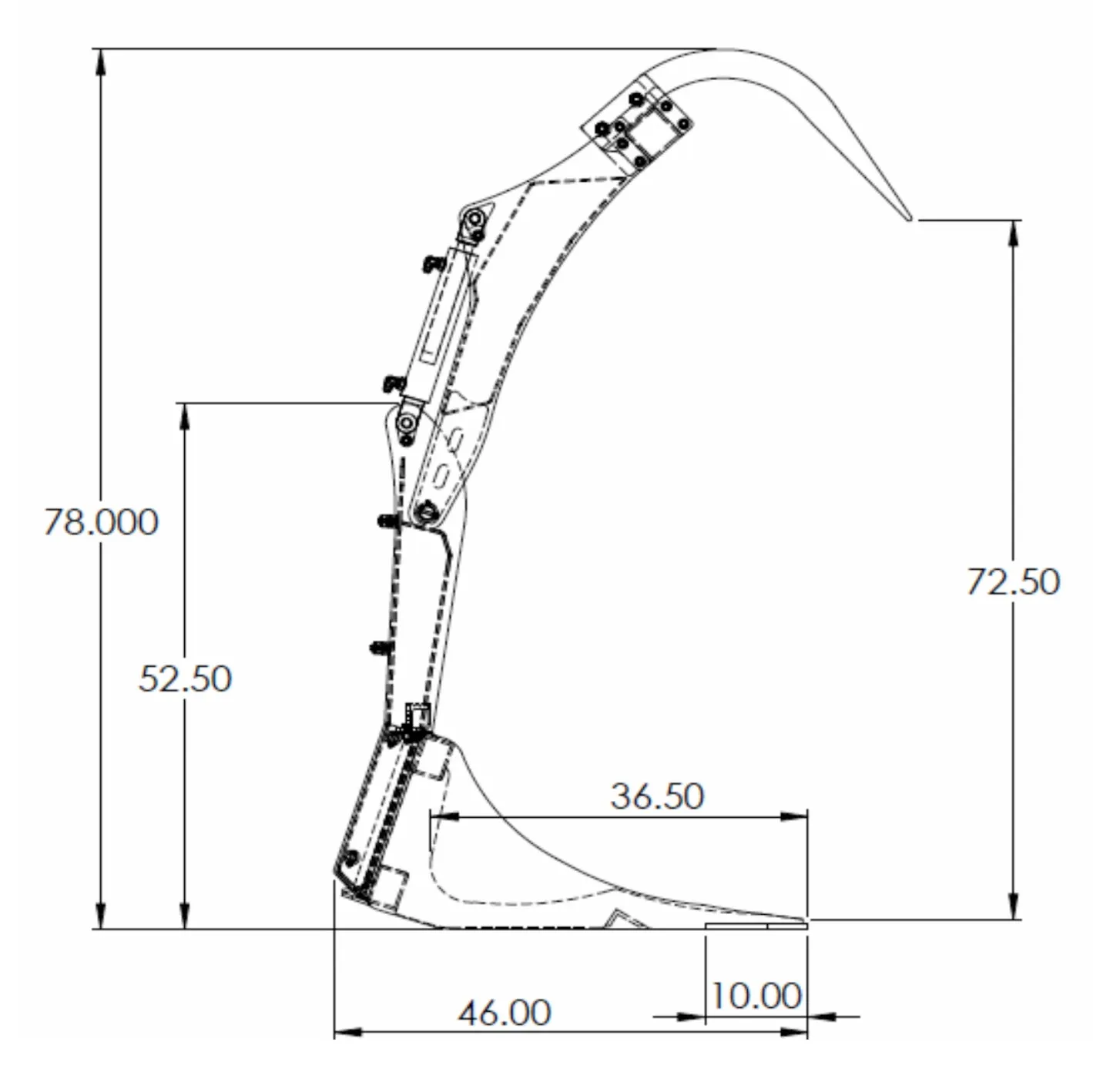

Specifications

Width	72"	79"	82"
Overall Height (Closed)	55"	55"	55"
Overall Height (Open)	78"	78"	78"
Overall Depth	60"	60"	60"
Grapple Opening	73"	73"	73"
Depth of Bucket	40"	40"	40"
Tines	3/8" Grade 50	3/8" Grade 50	3/8" Grade 50
Cutting Edge	1/2" x 10" Grade 50	1/2" x 10" Grade 50	1/2" x 10" Grade 50
Top Tube	3" x 4" x 1/4"	3" x 4" x 1/4"	3" x 4" x 1/4"
Bottom Tube	3" x 4" x 1/4"	3" x 4" x 1/4"	3" x 4" x 1/4"
Grapple Tines	5/8" T-1 - Laser Cut	5/8" T-1 - Laser Cut	5/8" T-1 - Laser Cut
Cylinders	2 1/2" x 12" - Welded Clevis	2 1/2" x 12" - Welded Clevis	2 1/2" x 12" - Welded Clevis
Hydraulic Couplers	Flat Face	Flat Face	Flat Face
Hydraulic Hoses	3/8"	3/8"	3/8"
PSI Max	3,000 PSI	3,000 PSI	3,000 PSI
Pivot Points	Grease Zerks	Grease Zerks	Grease Zerks
Weight	1204 lbs	1289 lbs	1342 lbs
